| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | Slider Panel Type 2 | Delivery: | EXW/FOB/CIF |
|---|---|---|---|
| Country Of Origin: | GUA,CN | Weight: | 4.5 Kg/pcs |
| Ports Number: | 24 Ports | Winding Radius: | ≥40mm |
| Highlight: | 40mm Optical Fiber Patch Panel,Optical Fiber Patch Panel E2000 port,sliding patch panel 24 ports |
||

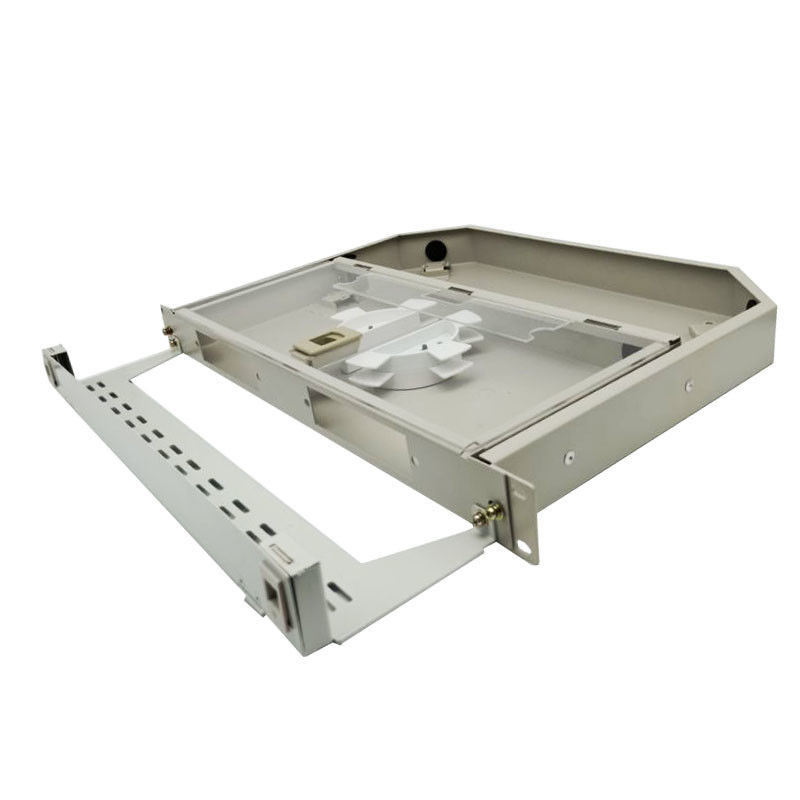

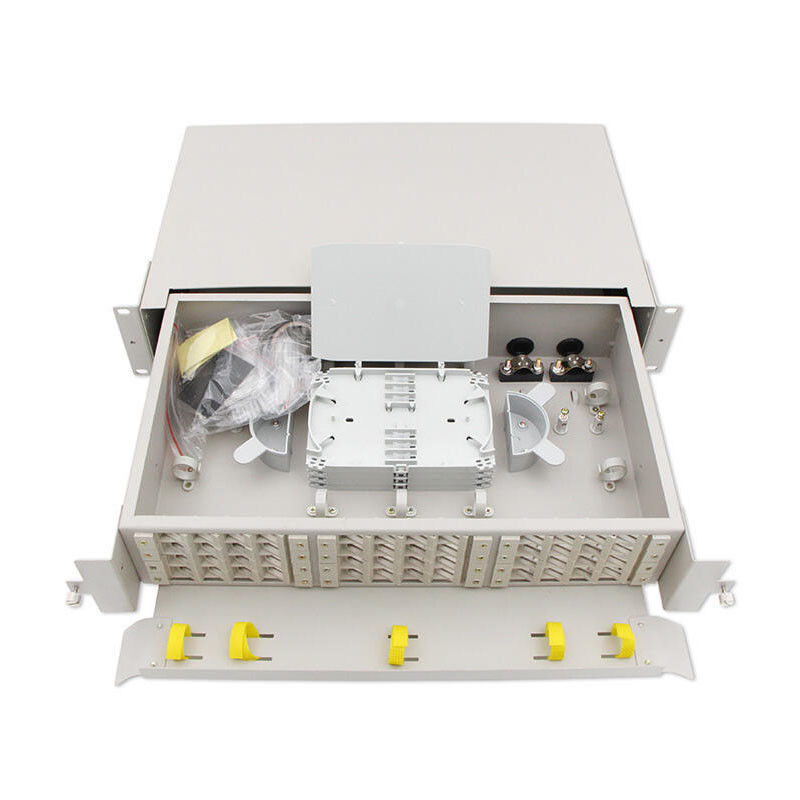

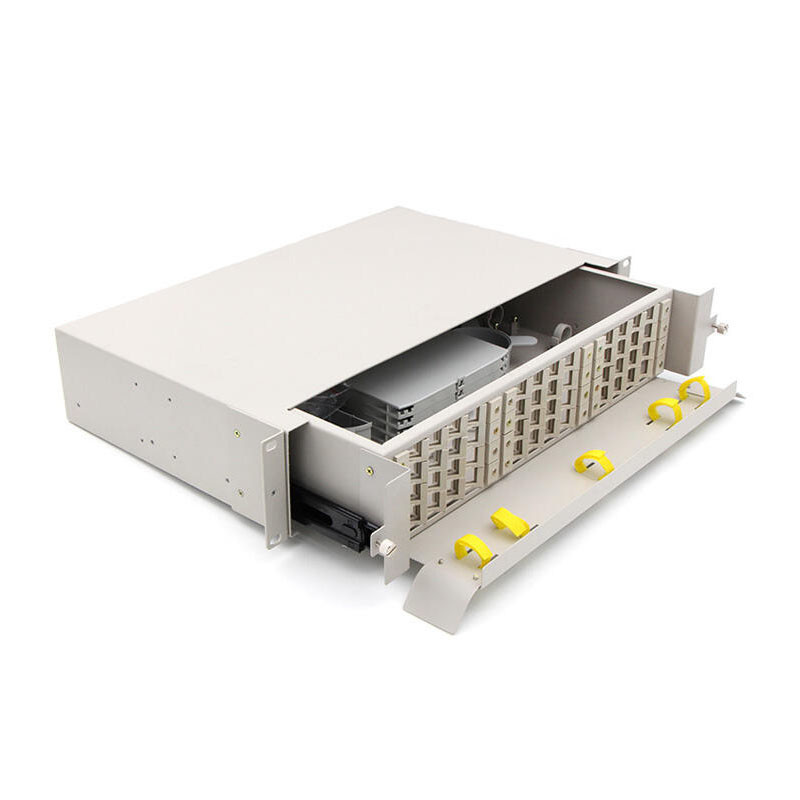

19 inch Fiber Optical Slider Patch Panel With Slider
Description
Optic fiber patch panel provides branch connection for fiber termination. It is an integrated unit for fiber management and can be used as distribution box. It divides into fix type and sliding-out type. This equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection. The patch panel is modular so they are applocable to your existing systems without any modification or additional work.
Features
3 pieces of front panel is changeable by modular panel, flexible choice for user.
24 ports are available.
Maximum capacity: 48 fibers
The body make use of cold rolling steel,and the surface use the technique of dim plastic.strong adhesive force,artistic and durable.
Cable entrance are sealed with oil resistance NBR to increase the flexibility.user can choose to prick the entrance. Overlapping fiber splice tray and separate insulation earthing unit make the disposition of the cores ,expanding the capacity and cable-earthen flexible,convinient and safe.
SC/ST/FC/LC/E2000 ports is available.
Application
CATV Network
FTTx System
Wide Area Network
Test Instruments
Specifications
| External size | 395*234*1U, 2U, 3U |
| Winding radius | ≥40mm |
| Fiber capacity | from 12 cores to 96 cores |
| Installing | rack mounted |
| Working temperature | -25°C~+45°C |
| Atmosphere pressure | 70~106Kpa |
| Insulated Resistance | 2×10MΩ/500V(DC) |
| Weight | 4.5 kg/pcs |
