| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |

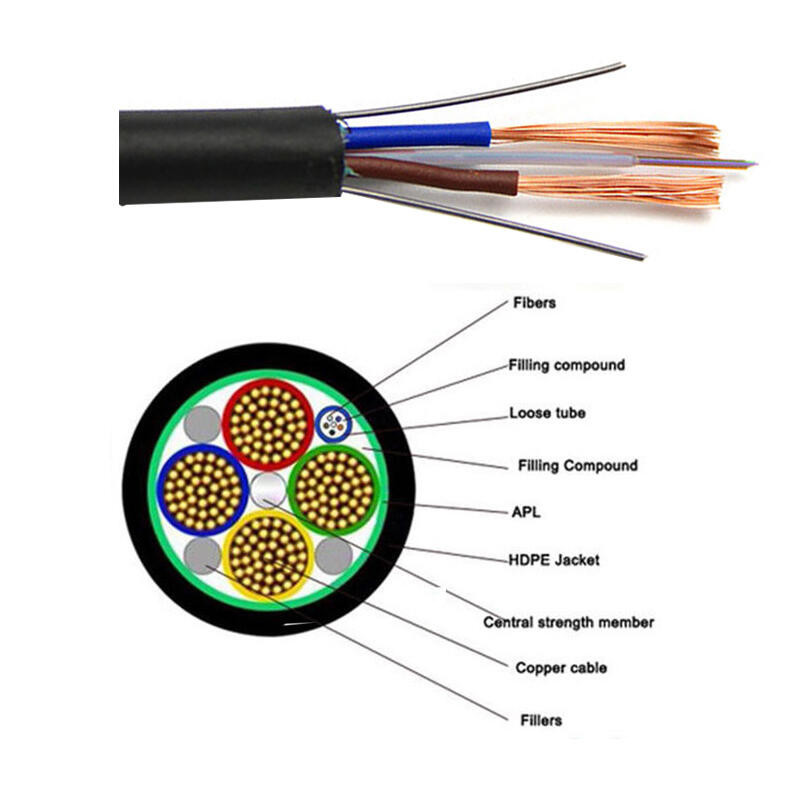

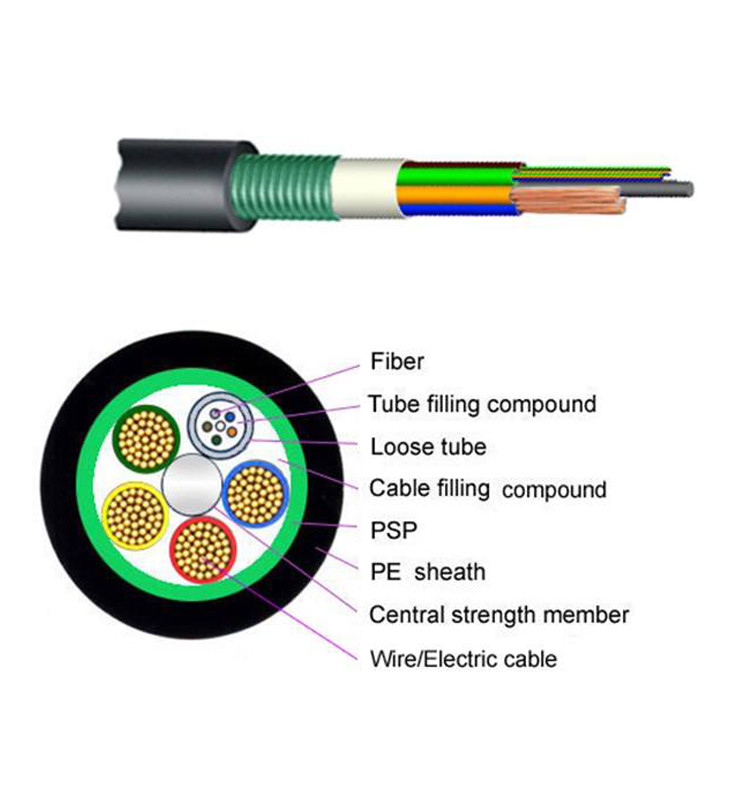

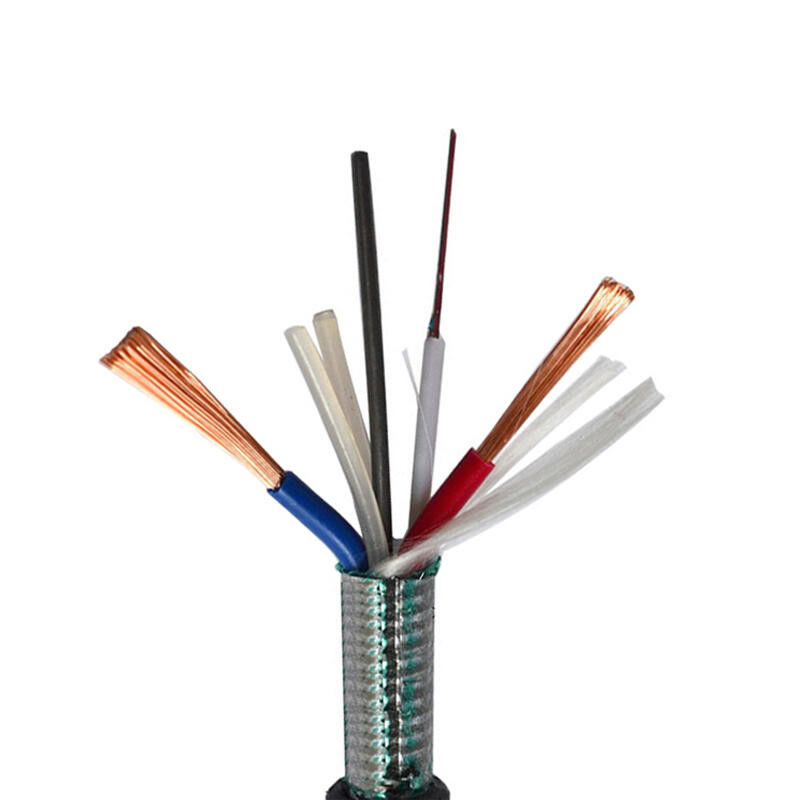

| Model NO.: | Optical Power Composite Hybrid Cable | Delivery: | EXW/FOB/CIF |
|---|---|---|---|
| Country Of Origin: | GUA, CN | Weight: | 347kg/km (RV-2*2.5mm) |
| High Light: | Outdoor Optical Fiber Cable 0.36 dB,Outdoor Optical Fiber Cable 30MM,aerial fiber optic cable FTTH |
||
G.652 | G.655 | 50/125μm | 62.5/125μm | |||
Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |||
(+20℃) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | ||||
@1550nm | ≤0.22 dB/km | ≤0.23dB/km | ||||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||||
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | ||||
Item | Technical Specifications | |
Bending Radius(mm) | Dynamic | 30D |
Static | 20D | |
Tensile Strength(N) | Short Term | 3000 |
Long Term | 1500 | |
Crush Resistance (N/100mm2) | Short Term | 3000 |
Long Term | 1000 | |
Operating Temperature range | Electric wire | -15℃～+70℃ |
Other materials except electric wire | -40℃～+70℃ | |
Water-blocking / Waterproof Performance | No water leak if immersed in water for long time | |
Construction Temperature range | -20℃～+60℃ | |
0℃～+60℃ | ||
Weight | 347kg/km (RV-2*2.5mm) | |
382kg/km (RV-4*2.5mm) | ||
502kg/km (RV-6*2.5mm) | ||
628kg/km (RV-8*2.5mm) | ||
Mechanical Properties | Stretching, crushing, impacting, repeated bending, torsion, winding and loss comply with YD / T 901-2001 | |
Applicable System of Laying | Suitable for pipe, channel, cable trenches, aerial, direct burial and so on | |
