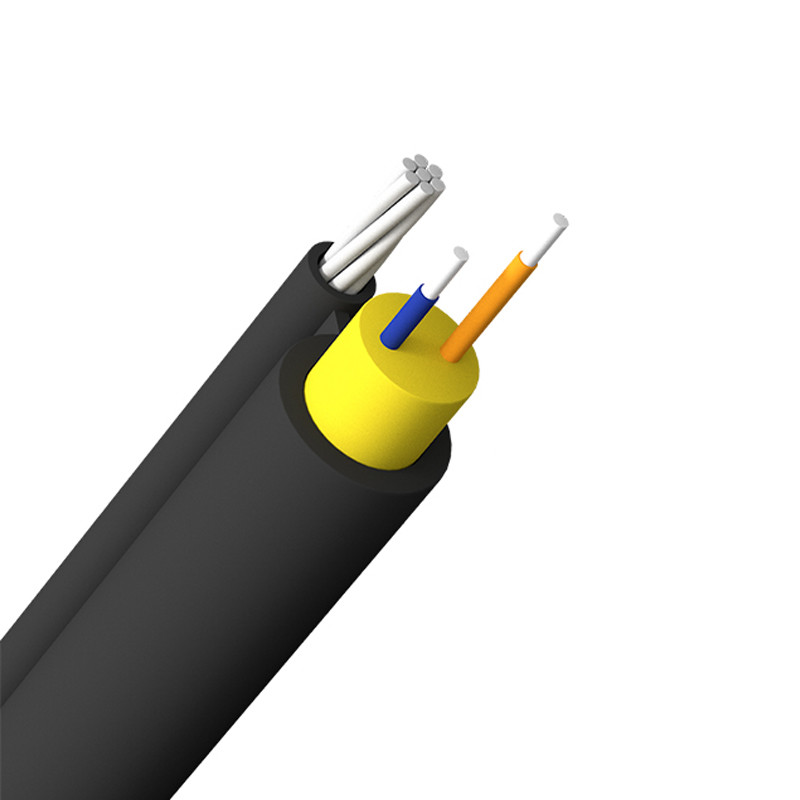

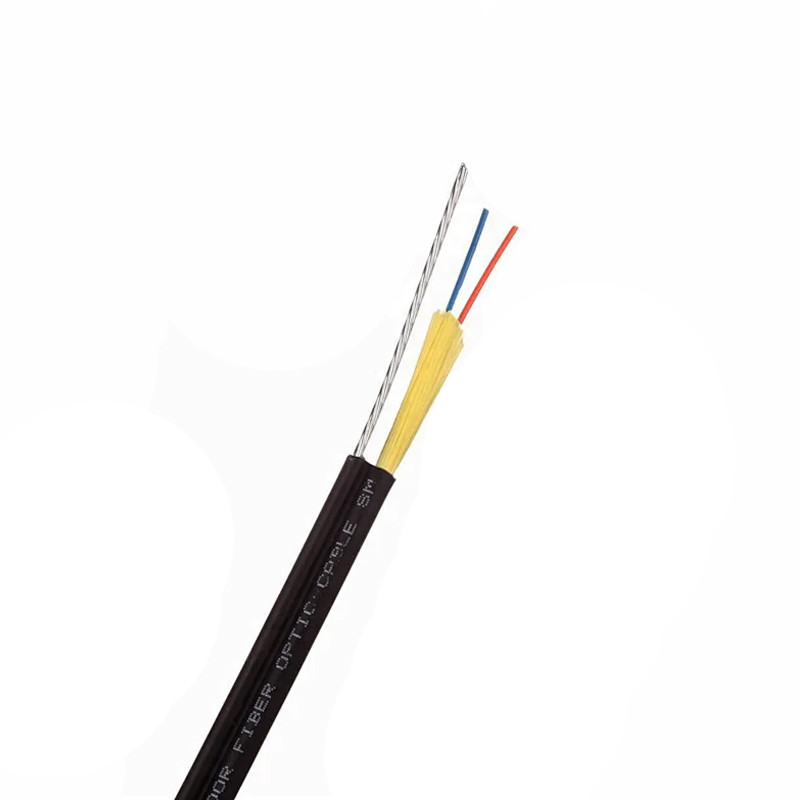

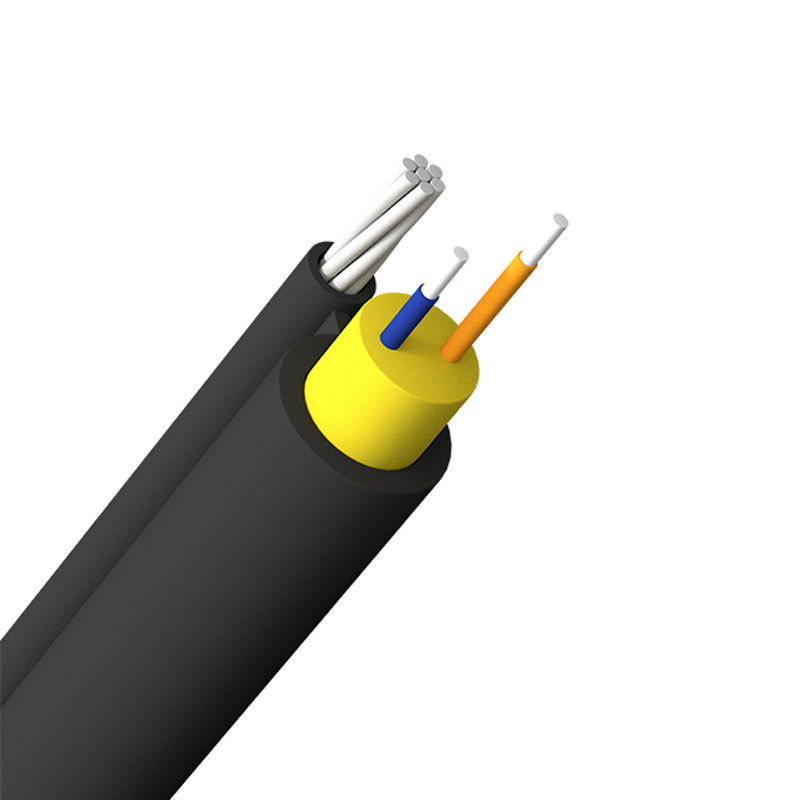

FTTH Drop Cable Aerial FIG-8 Round Type
Description
FTTH drop cable is a new type of fiber-optic cable. It is a butterfly-shaped cable. Because it is small in size and light in weight, it is suitable for the application of Fiber to the Home. It can be cut according to the distance of the site, increased the efficiency of construction.
FTTH fiber drop cables with FRP, KFRP, metal or non-metal strength members that designed for high-capacity indoor/outdoor FTTH networks.
Features
Application

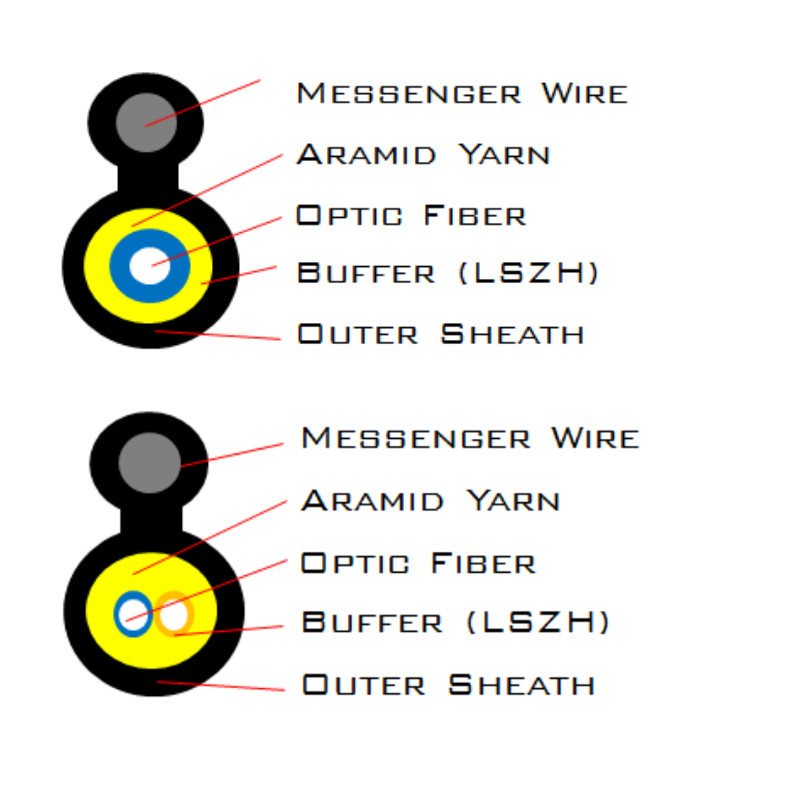

Construction of Fiber Optic Cable
| Structure | Material | SPECIFICATIONS |
| Aerial Type (1C, 2C) | ||
| Optical fiber | Single Mode | G.657A2 |
| Colored fiber | 1F : Blue 2F : Blue, Orange |
|
| Messenger Wire | Zinc coated Steel Wire | Φ1.1±0.1 |
| Strength member | Aramid Yarn | |
| Outer sheath | Material | Outdoor LSZH |
| Diameter | 1F Diameter : 3.0±0.1* 5.8±0.2mm Thickenss : 0.75±0.1mm 2F Diameter : 3.2±0.1*5.9±0.2mm Thickenss(Avr) : 0.55±0.2mm |
|
| Color | Black (Carbon 2.6±0.2%) | |
| Marking(Ink Jet) | White The marking is printed every 1 meter |
|
Cable diameter & Construction details
| Fiber Count |
Outer Diameter (W * H, mm) |
Tensile strength (N) |
Weight (NET. Kg/km) |
| FIG-8 type (Non-metallic) 1F |
3.0±0.1* 5.8±0.2mm | 1,300 (with Messenger wire) 600 (with Messenger wire) |
21 |
| FIG-8 type (Non-metallic) 1F |
Diameter : 3.2±0.1*5.9±0.2mm |
1,300 (with Messenger wire) 600 (with Messenger wire) |
22 |
Fiber characteristic(ITU-T G.657A2):
| Parameter | Specification | |
| Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
≤ 0.350 dB/km ≤ 0.350 dB/km ≤ 0.215 dB/km ≤ 0.350 dB/km |
|
| PMD | ≤ 0.06 dB(ps/km1/2 ) | |
| cut-off wavelength | ≤ 1260 nm | |
| Zero-dispersion wavelength | 1300 ~ 1324 nm | |
| Zero-dispersion slope | ≤ 0.092 ps/(nm^2.km) | |
| Chromatic dispersion @ 1285 ~ 1625 nm @ 1550 nm |
≤ 3.0 ps/(nm^2.km) ≤ 18.0 ps/(nm^2.km) |
|
| Mode field diameter @ 1310 nm | 8.7 ± 0.5 ㎛ | |
| Core/Clad concentricity error | ≤ 0.5 ㎛ | |
| Cladding diameter | 124.6 ± 0.5 ㎛ | |
| Cladding non-circularity | ≤ 0.5 % | |
| Primary Coating diameter | 245 ± 10㎛ | |
| Proof test level | 100 kpsi, 1% | |
| Attenuation coefficient |
Max. from 1310nm to 1625nm | 0.35dB/km |
| Max. at 1383nm ±3nm | 0.35dB/km | |
| Max. at 1550nm | 0.215dB/km | |
| Attenuation with Cable bending Loss | 15 mm diameter, 10 turn | 1550nm ≤ Δ 0.03 dB/km ↓ |
