| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM, CARTON |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | FTTH GJYFJH | ||
|---|---|---|---|
| High Light: | GJPFXJH FTTH Optical Fiber Cable,24 core FTTH Optical Fiber Cable,fiber ethernet cable Vertical WiringG652D |
||

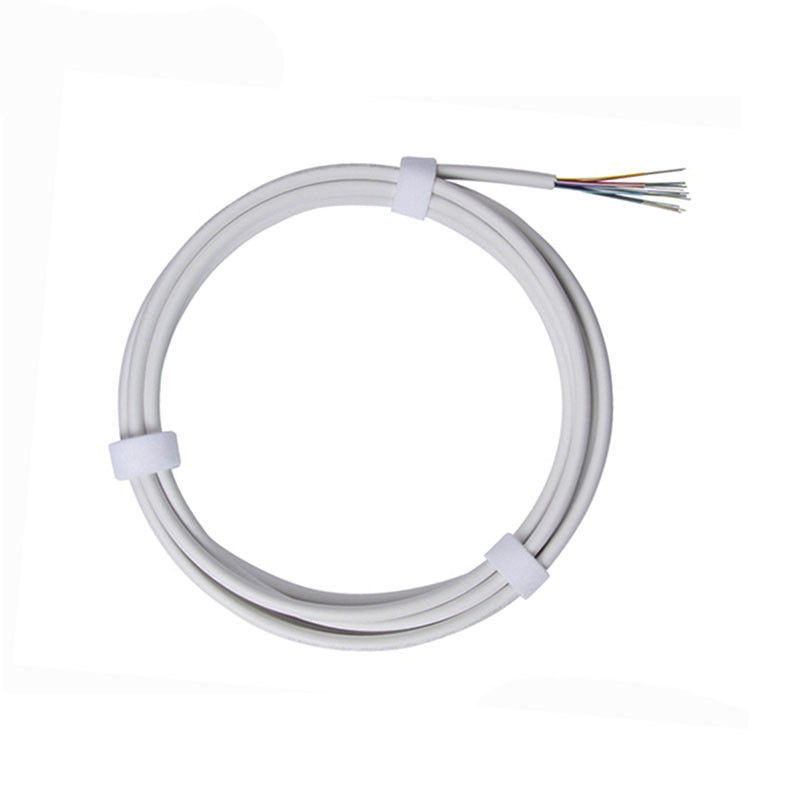

Fiber Optic Indoor Outdoor Vertical Wiring Easy Branch Drop Cable GJPFXJH
Description

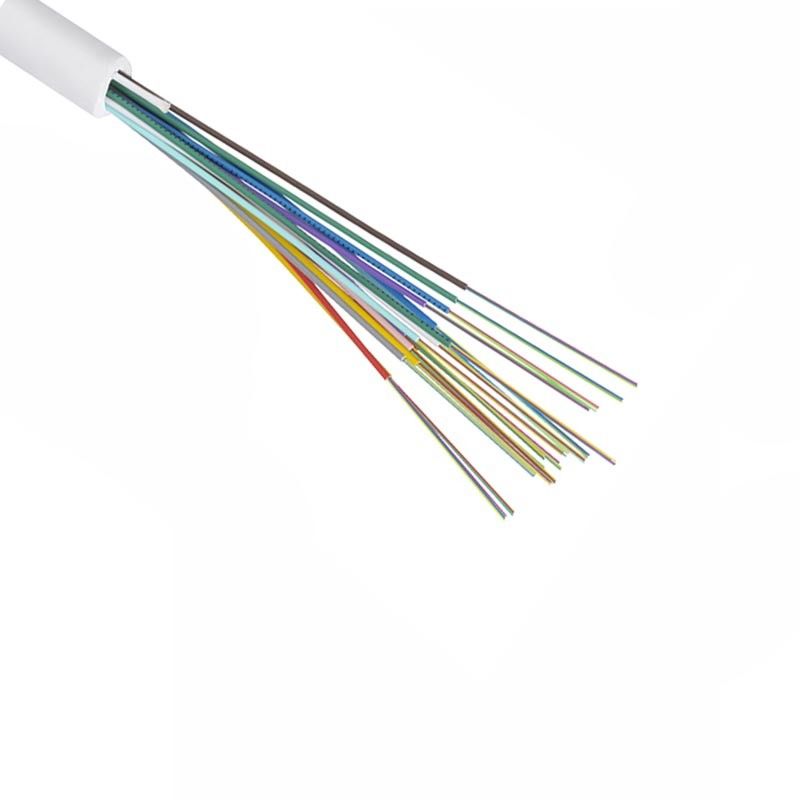

GJPFXJH fiber optic cable is mainly used for vertical and horizontal wiring of buildings.This cable fully reflects the the fibre core is peeling easily and branching easily. At the corresponding floor, only the corresponding optical fiber is used to take out the corresponding optical fiber for construction, and it is not necessary to disconnect the entire optical fiber cable, thereby greatly saving construction process. It is now widely used in telecommunications, mobile communication buildings and inter-office communications.
Features
Application
Specification
| No. of cable | 6 | 12 | 24 | 48 | 72 | 96 | |
| Design | 1+5 | 1+5 | 1+5 | 1+5 | 1+6 | 1+8 | |
| (StrengthMember+Tube&Filler) | |||||||
| Fiber type | G.652D | ||||||
| Central Strength Member | Material | FRP | |||||
| Diameter mm (±0.05mm) | 1.5 | 1.5 | 1.5 | 1.5 | 2.1 | 2.1 | |
| Loose Tube | Material | PBT | |||||
| Diameter mm (±0.05mm) | 1.8 | 1.8 | 1.8 | 2.1 | 2.1 | 2.1 | |
| Thickness mm (±0.03mm) | 0.32 | 0.32 | 0.32 | 0.35 | 0.35 | 0.35 | |
|
|
MAX.NO./per | 6 | 6 | 6 | 12 | 12 | 12 |
| Filler Rope | Material | LDPE | |||||
| Diameter mm (±0.05mm) | 1.8 | 1.8 | 1.8 | 2.1 | — | — | |
| NO. | 4 | 3 | 1 | 1 | — | — | |
| Water Blocking Layer | Material | Flooding Compound& Water Blocking tape | |||||
| Additional Strength Member | Material | Aramid Yarn | |||||
| Outer Sheath | Material | MDPE | |||||
| Thickness mm | 1.8(nominal) | ||||||
| colour | black. | ||||||
| Cable Diameter(±0.2mm) mm | 9.6 | 9.6 | 9.6 | 10.2 | 10.8 | 12.1 | |
| Cable Wetght(±10.0kg/km) kg/km | 67 | 67 | 67 | 78 | 87 | 116 | |
| Attenuation coefficient dB/km | 1310nm | ≤0.35 | |||||
| 1550nm | ≤0.21 | ||||||
| Cable breaking strength(RTS) kn | ≥5.8 | ||||||
| Working Tension (MAT) kn | ≥2.2 | ||||||
| Wind velocity m/s | 30 | ||||||
| Icing mm | 5 | ||||||
| Span m | 200 | ||||||
| Crush Resistance (N/100mm) | Short Term | ≥2200 | |||||
| Long Term | ≥1100 | ||||||
| Min. bending radius (mm) | Without Tension | 10.0×Cable-φ | |||||
| Under Maximum Tension | 20.0×Cable-φ | ||||||
| Temperature range (℃) | Installation | -20~+60 | |||||
| Transport&Storage | -40~+70 | ||||||
| Operation | -40~+70 | ||||||
