| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM, CARTON |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | FTTH GJYFJH | ||
|---|---|---|---|
| High Light: | Unitube fiber optic cable ftth,fiber optic cable ftth 5X6 MM,Unitube flat drop fiber cable 50um |
||

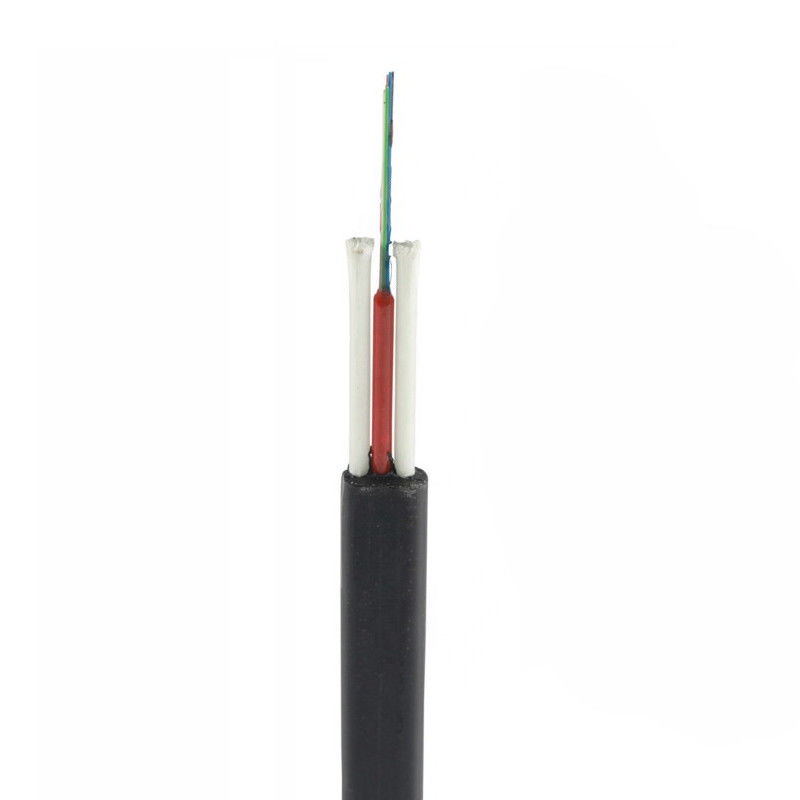

Flat Structure Uni-tube Outdoor Fiber Optic Drop Cable
Description

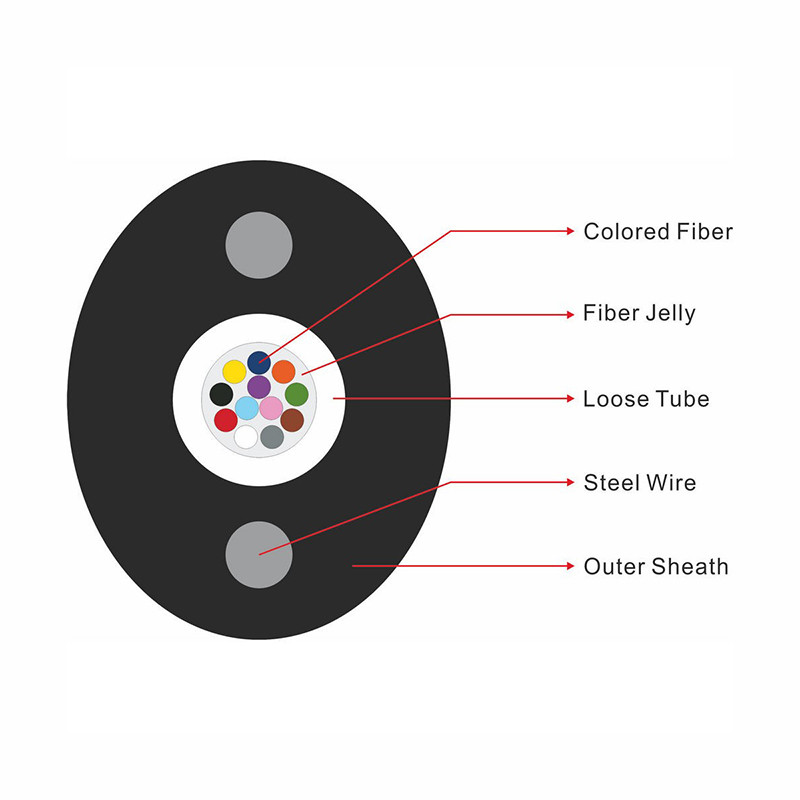

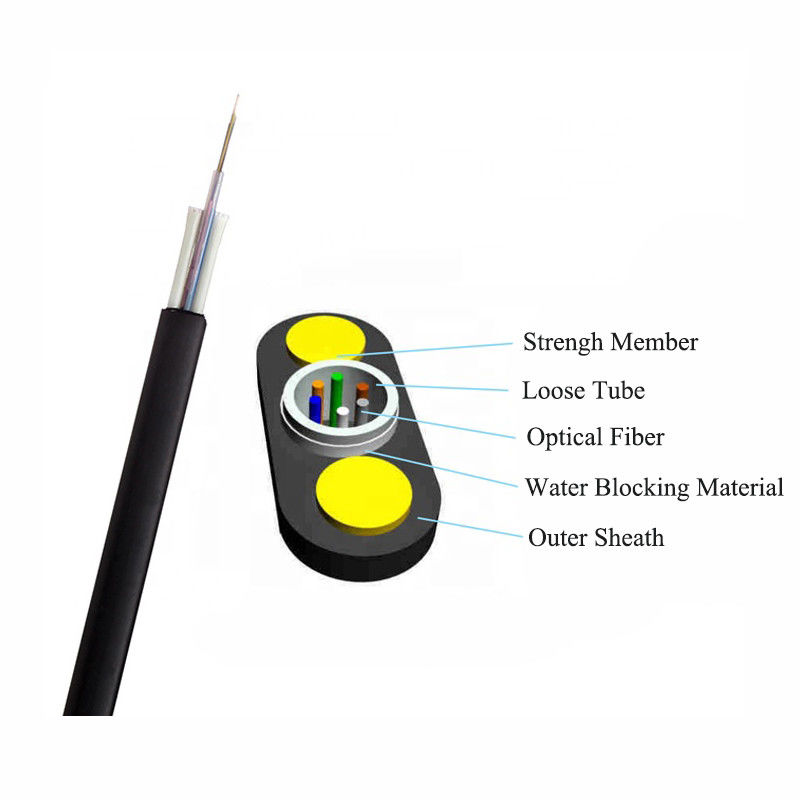

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Features
Application
Optical Charactericstics:
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.00 dB/km | ≤0.00dB/km | |||
| @1550nm | ≤0.00 dB/km | ≤0.00dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥500 MHz·km | ≥500 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
Technical Parameters:
| Cable Type | Fiber count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/ Short Term N | Crush Resistance Long / Short Term N/100mm | Bending Radius Static /Dynamic mm |
| GYXTPY | 1~12 | 5.0*6.0 | 29 | 250/500 | 300/1000 | 12.5D/25D |
